Description
Genuine Toyota P410 hybrid transaxle for the ZVW30 chassis Prius. This is the electronically controlled continuously variable transmission (e-CVT) that carries the MG1 and MG2 motor-generators and the power-split planetary gearset – there is no torque converter and no conventional gear train in this unit.
Pulled from a low-mileage Japanese-market donor vehicle, shifted and inspected before it is listed.
Fitment
- Toyota Prius 2010-2015 – ZVW30 chassis
- Toyota Prius v 2012-2017 – ZVW40 / ZVW41 chassis
- Lexus CT200h 2011-2017 – ZWA10 chassis
- Toyota Auris Hybrid (JDM/EU) 2010-2015

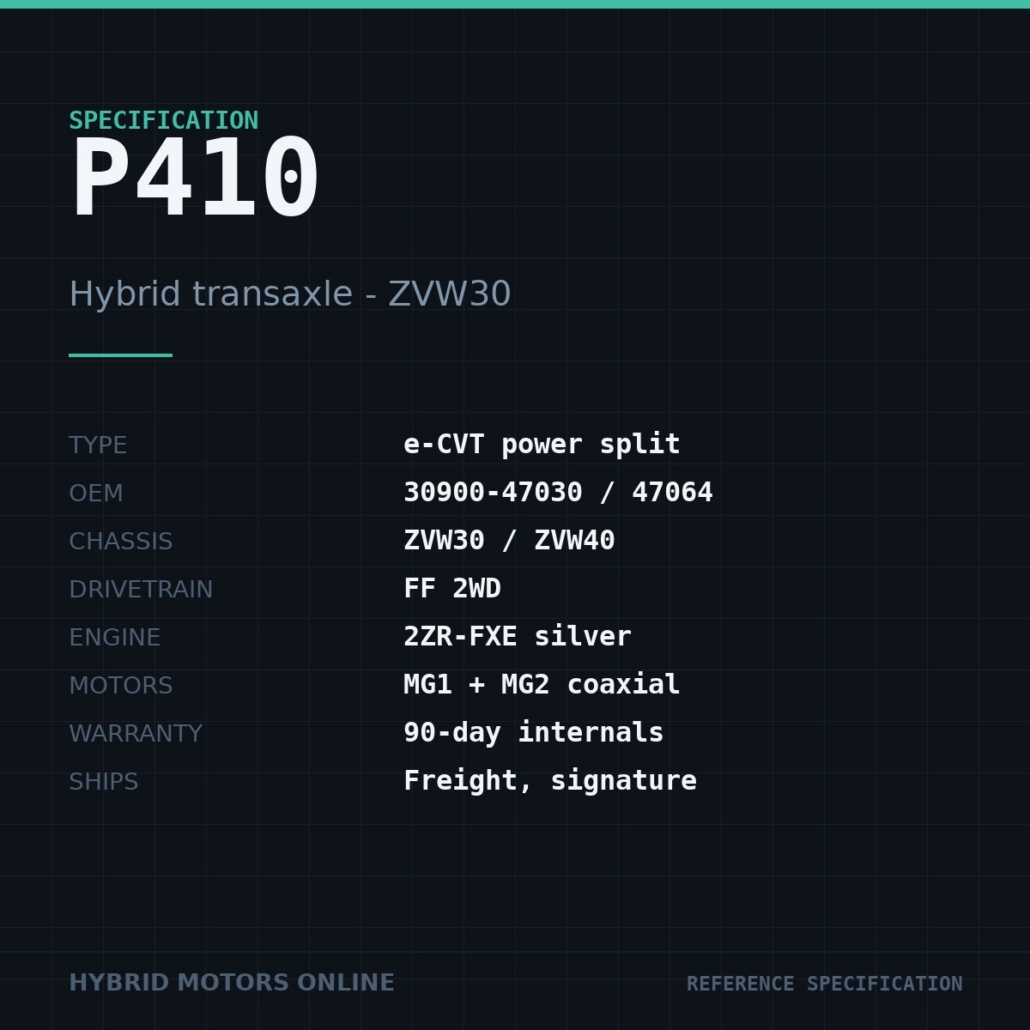

Specifications
- Unit designation: P410
- OEM part numbers: 30900-47030 / 30900-47064
- Type: e-CVT power-split hybrid transaxle
- Drivetrain: FF 2WD
- Paired engine: 2ZR-FXE (silver)
What’s included
Transaxle assembly only. Engine, inverter, axles, and mounts are not included. Any external brackets or sensors still attached are shipped as a courtesy and are not covered by the warranty.
Warranty
90-day warranty on internal moving components of the transaxle, from date of delivery. Claims require the original unit to be returned complete as shipped.
High-voltage safety
This is a high-voltage hybrid component. Removal and installation must be performed by a technician qualified in hybrid/EV service, using the correct isolation procedure and personal protective equipment.
Shipping
Ships freight, 2-7 business days within the continental US. Residential deliveries are curbside to the nearest terminal; signature required. Inspect the shipment before signing – damage claims must be filed with the carrier.
