Description
Genuine Toyota inverter assembly with converter for the early third-generation Prius, ZVW30 chassis, 2010-2011 production. This single unit does three jobs: it inverts the traction pack’s DC to three-phase AC for MG1 and MG2, it rectifies regenerative output back to DC, and its integrated DC-DC converter steps the high-voltage bus down to 12V to run the accessory system in place of an alternator.
Match your part number before ordering. Toyota revised the inverter mid-generation; the 2010-2011 units and the 2012-2015 facelift units are not interchangeable. The number is printed on the label on top of the case.
Fitment
- Toyota Prius 2010-2011 – ZVW30 chassis
- Part numbers: G9200-47170, G9200-47181, G9200-47140, G9200-47141

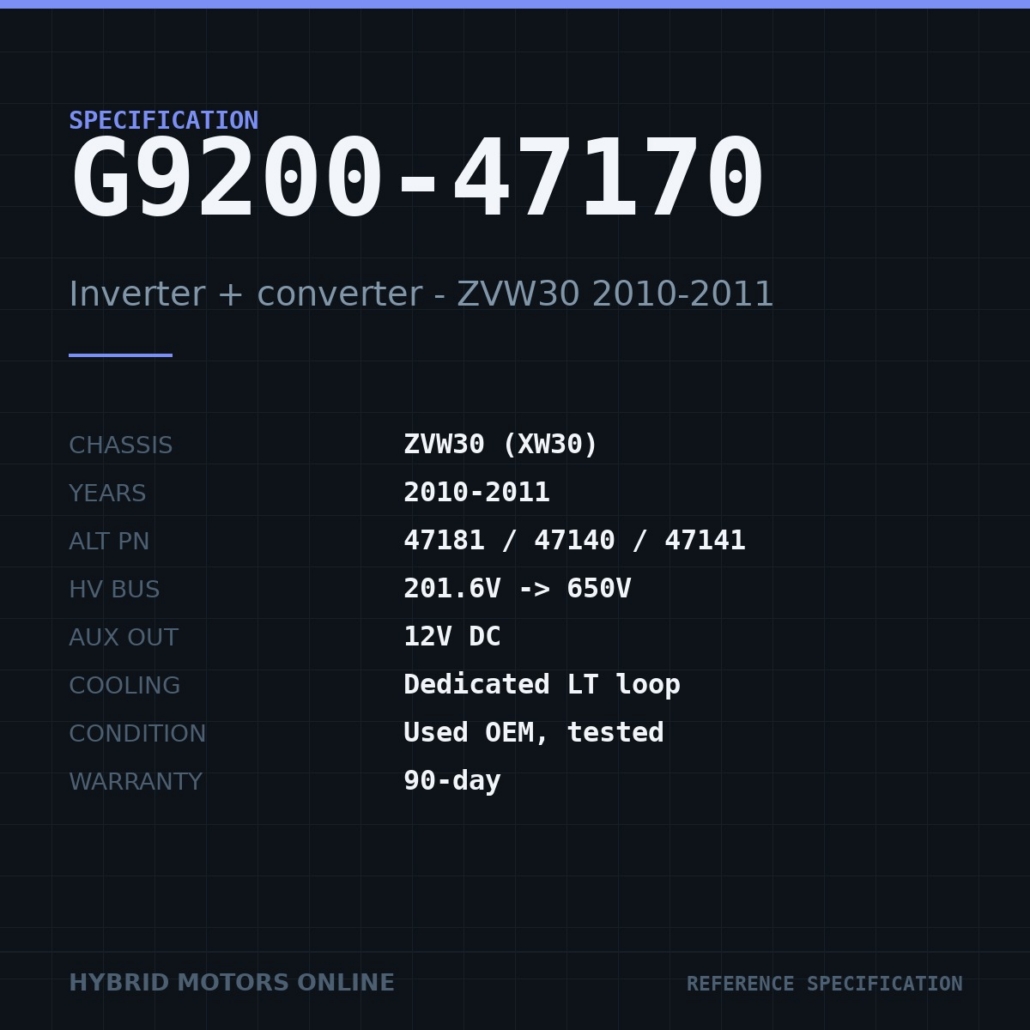

Specifications
- Type: Inverter assembly with integrated DC-DC converter
- Traction bus: 201.6V NiMH pack, boosted to 650V
- Accessory output: 12V DC
- Cooling: Dedicated low-temperature inverter coolant loop
- Condition: Used OEM, tested, imported from Japan
What’s included
Inverter assembly with integrated DC-DC converter, as pictured. High-voltage cables, coolant hoses, mounting brackets and the inverter coolant pump are not included unless shown.
Warranty
90-day warranty from date of delivery. The unit must be installed by a qualified hybrid technician for the warranty to remain valid.
High-voltage safety
This is a high-voltage hybrid component. Removal and installation must be performed by a technician qualified in hybrid/EV service, using the correct isolation procedure and personal protective equipment.
Shipping
Ships freight, 2-7 business days within the continental US. Residential deliveries are curbside to the nearest terminal; signature required. Inspect the shipment before signing – damage claims must be filed with the carrier.
