Description

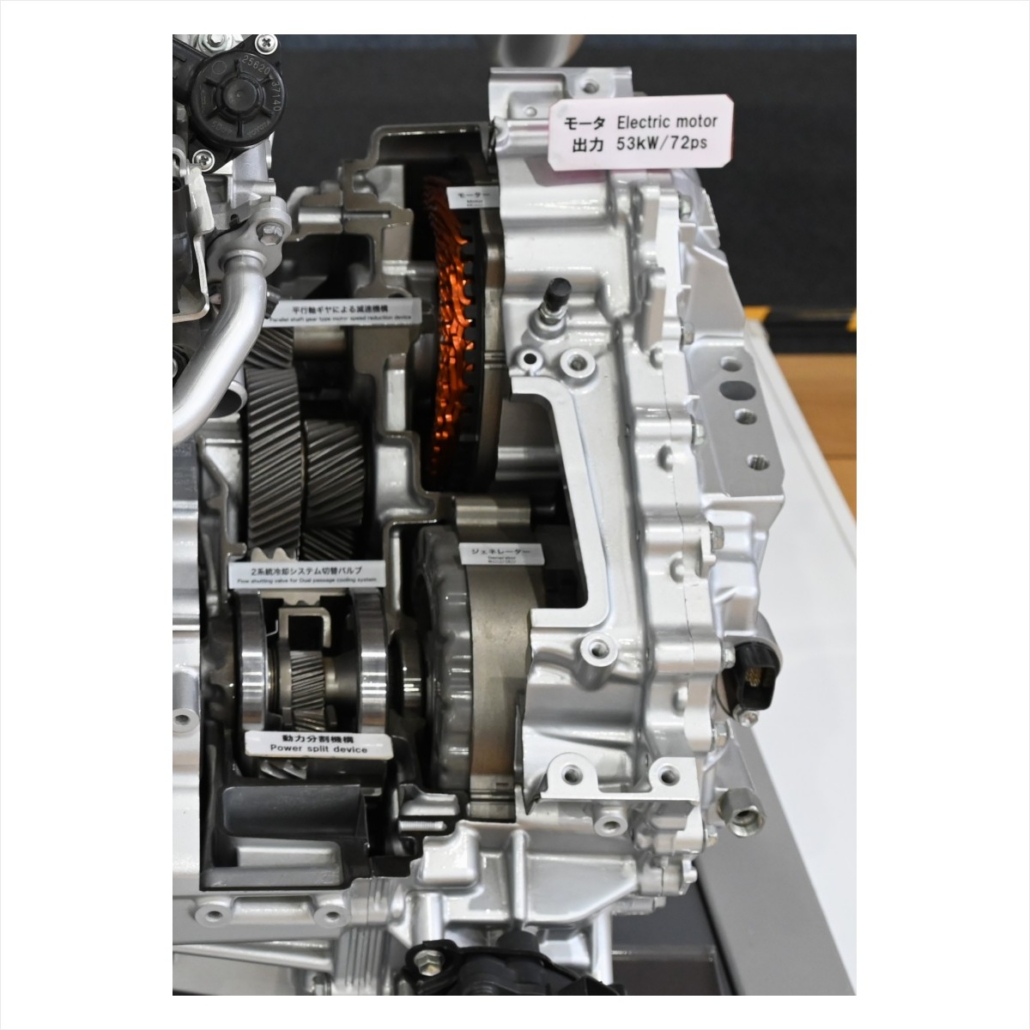

Genuine Toyota P610 hybrid transaxle for the fourth-generation Prius, ZVW50 chassis. The P610 replaced the P410 for the XW50 platform: Toyota moved MG1 and MG2 onto parallel shafts rather than a single coaxial shaft, which shortened the unit, cut internal friction by roughly 20 percent and dropped about 20 lb of mass.
Before ordering, confirm you have a P610. Check for FU as the 7th and 8th characters of your VIN, or look for P610 on the driver’s door-jamb sticker. The P410 and P610 are not interchangeable.
Fitment
- Toyota Prius 2016-2022 – ZVW50 chassis (XW50, 2015-up)
- FWD models only – AWD-e uses a separate rear e-axle

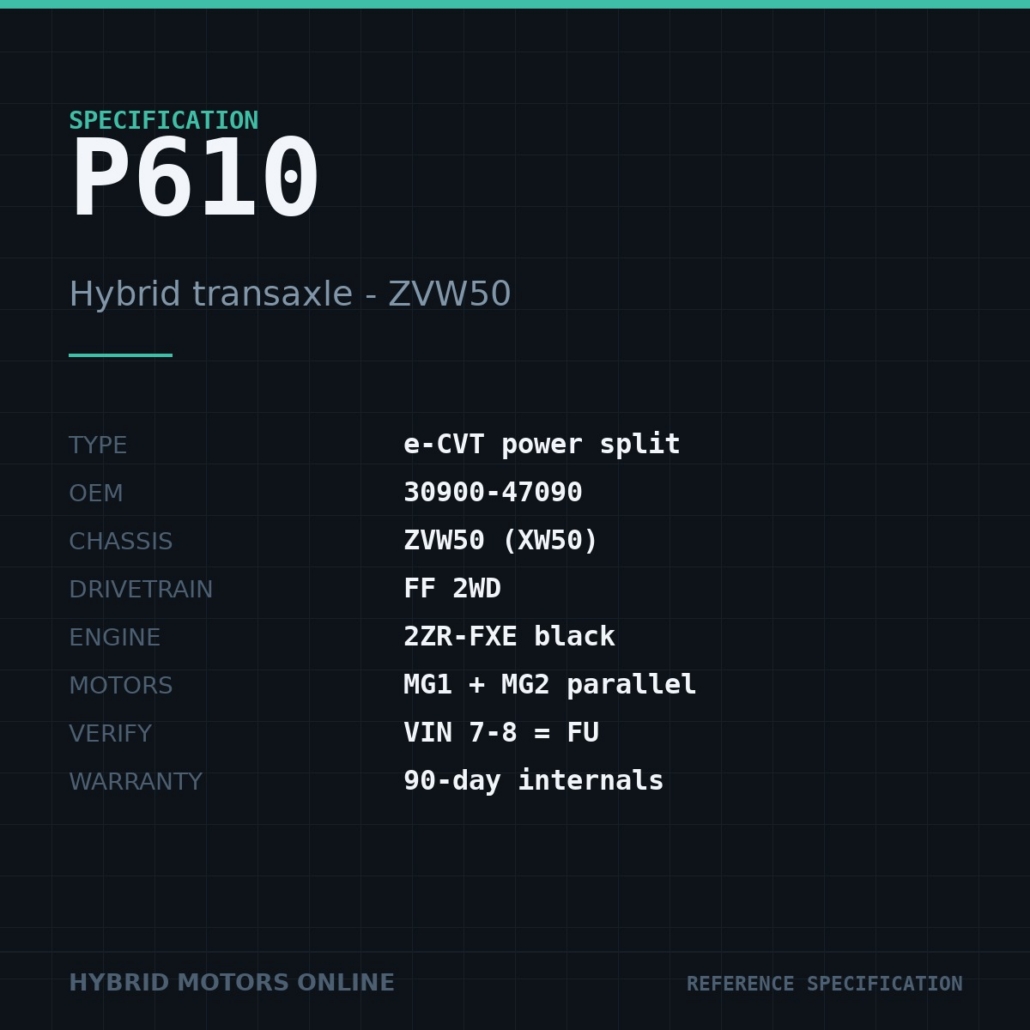

Specifications
- Unit designation: P610
- OEM part number: 30900-47090
- Type: e-CVT power-split hybrid transaxle, parallel-shaft MG layout
- Drivetrain: FF 2WD

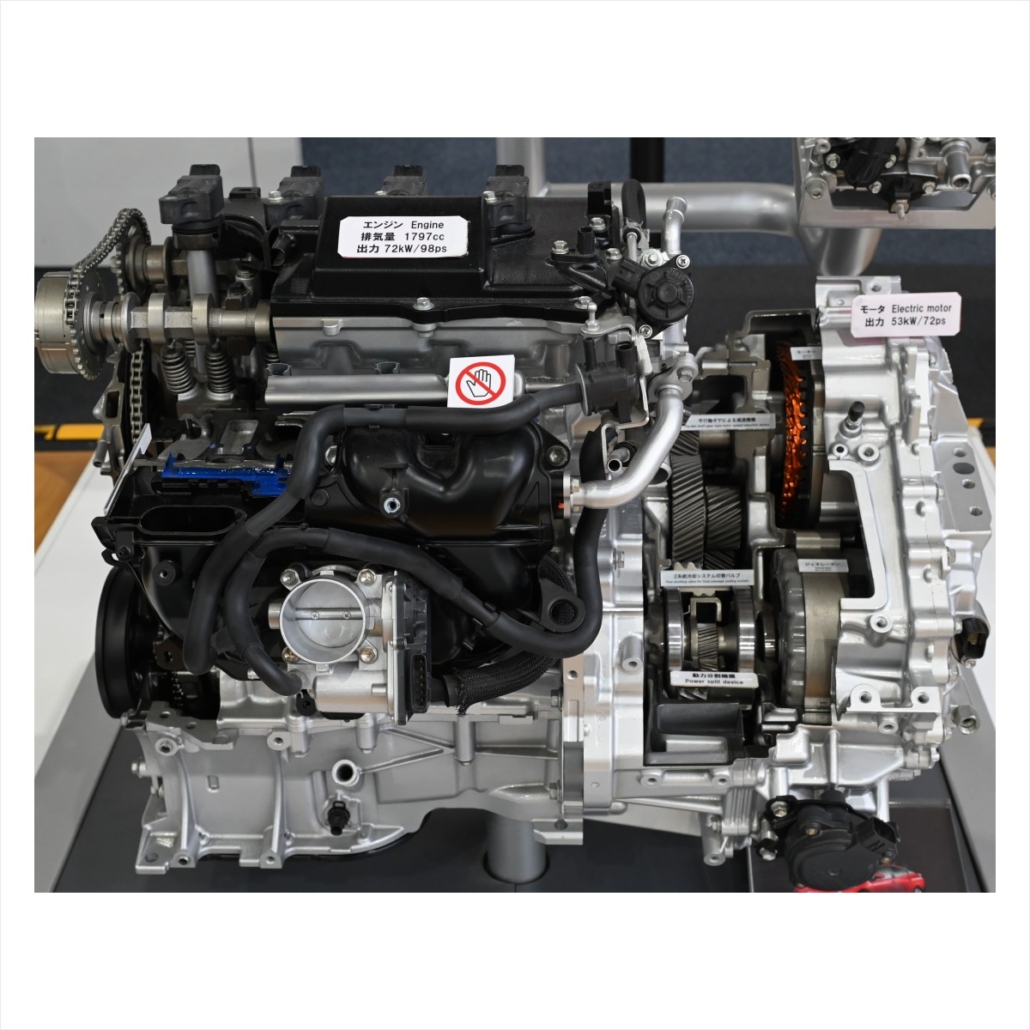

- Paired engine: 2ZR-FXE (black)
What’s included
Transaxle assembly only. Engine, inverter, axles and mounts are not included.
Warranty
90-day warranty on internal moving components, from date of delivery.
High-voltage safety
This is a high-voltage hybrid component. Removal and installation must be performed by a technician qualified in hybrid/EV service, using the correct isolation procedure and personal protective equipment.
Shipping
Ships freight, 2-7 business days within the continental US. Residential deliveries are curbside to the nearest terminal; signature required. Inspect the shipment before signing – damage claims must be filed with the carrier.
