Description
Genuine Toyota inverter assembly with converter, part number G9200-47161, for the Toyota Prius v (Prius Alpha), chassis ZVW40 / ZVW41. Drives MG1 and MG2, recovers regenerative braking energy into the traction pack, and supplies the 12V accessory system through its integrated DC-DC converter.
The Prius v uses its own inverter part number despite sharing the 2ZR-FXE engine and P410 transaxle with the ZVW30. Confirm the number on your existing unit’s top label before ordering.
Fitment
- Toyota Prius v 2012-2017 – ZVW40 / ZVW41 chassis
- Toyota Prius Alpha (JDM)
- Part number: G9200-47161

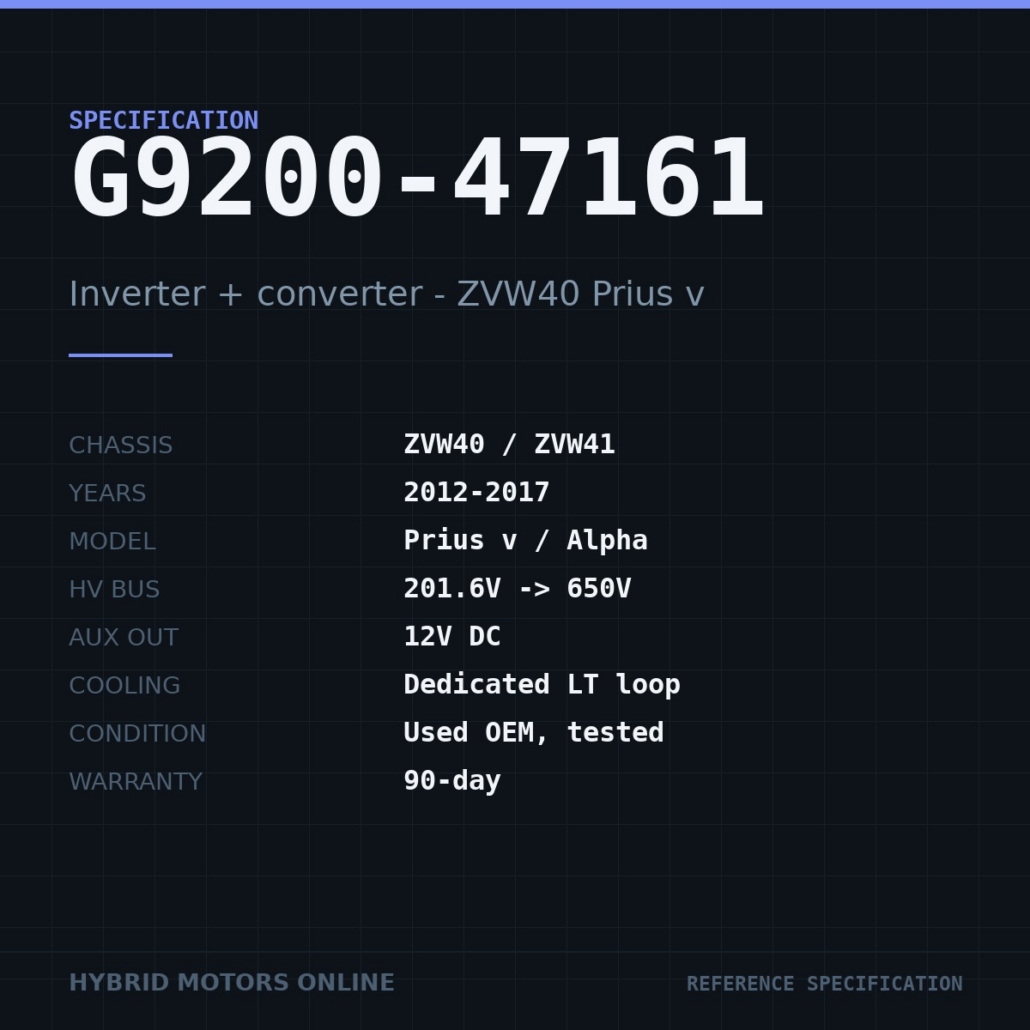

Specifications
- Type: Inverter assembly with integrated DC-DC converter
- Traction bus: 201.6V NiMH pack, boosted to 650V
- Accessory output: 12V DC
- Cooling: Dedicated low-temperature inverter coolant loop
- Condition: Used OEM, tested, imported from Japan
What’s included
Inverter assembly with integrated DC-DC converter, as pictured. High-voltage cables, coolant hoses, mounting brackets and the inverter coolant pump are not included unless shown.
Warranty
90-day warranty from date of delivery. The unit must be installed by a qualified hybrid technician for the warranty to remain valid.
High-voltage safety
This is a high-voltage hybrid component. Removal and installation must be performed by a technician qualified in hybrid/EV service, using the correct isolation procedure and personal protective equipment.
Shipping
Ships freight, 2-7 business days within the continental US. Residential deliveries are curbside to the nearest terminal; signature required. Inspect the shipment before signing – damage claims must be filed with the carrier.
