Description
Genuine Toyota inverter assembly with converter, part number G9200-47210, for the facelift third-generation Prius on the ZVW30 chassis. Handles DC-to-AC inversion for the MG1 and MG2 motor-generators, rectification of regenerative braking energy back into the traction pack, and 12V accessory supply through the integrated DC-DC converter.
Note on part number confusion: some sellers list G9200-47210 as a Prius C part. It is not. The Prius C is chassis NHP10 with a 1NZ-FXE engine and a different inverter entirely. G9200-47210 is a ZVW30 Gen-3 Prius unit.
Fitment
- Toyota Prius 2012-2015 – ZVW30 chassis (facelift)
- Part number: G9200-47210

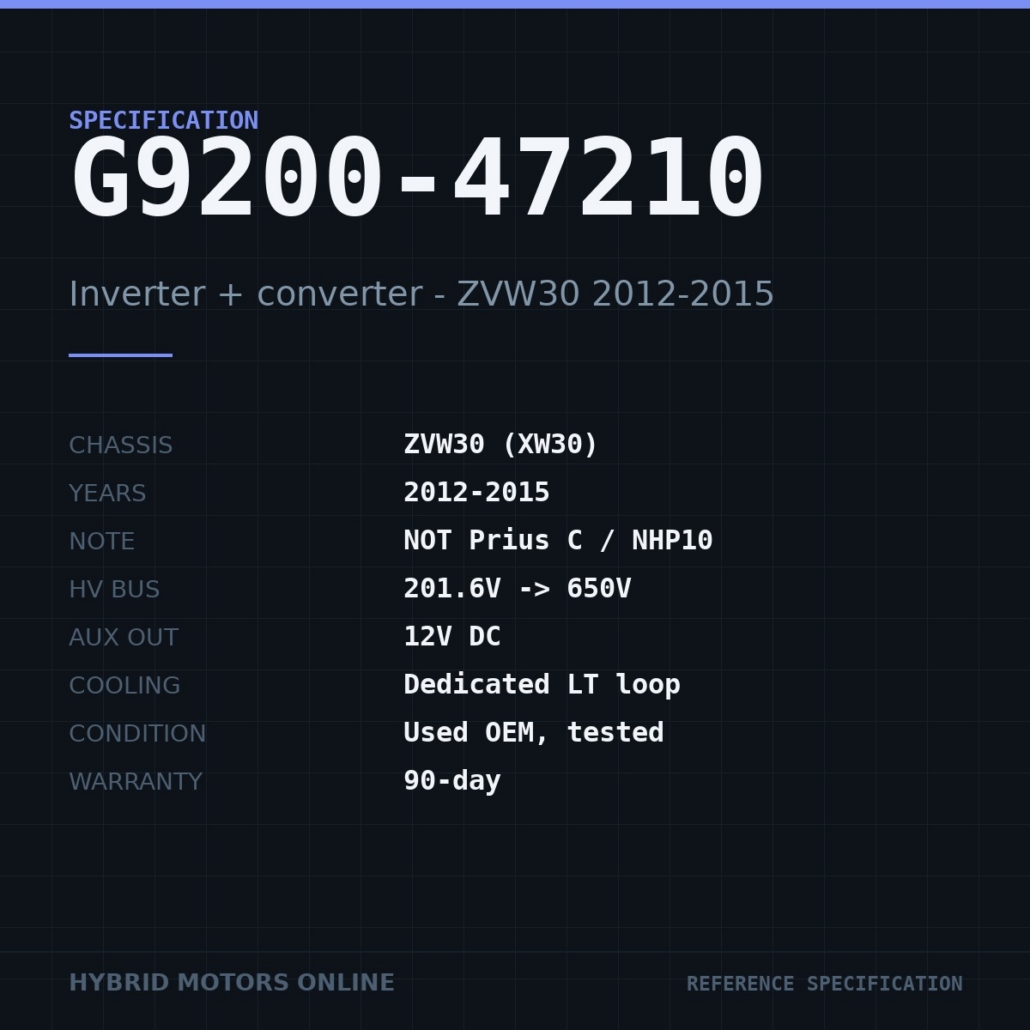

Specifications
- Type: Inverter assembly with integrated DC-DC converter
- Traction bus: 201.6V NiMH pack, boosted to 650V
- Accessory output: 12V DC
- Cooling: Dedicated low-temperature inverter coolant loop
- Condition: Used OEM, tested, imported from Japan
What’s included
Inverter assembly with integrated DC-DC converter, as pictured. High-voltage cables, coolant hoses, mounting brackets and the inverter coolant pump are not included unless shown.
Warranty
90-day warranty from date of delivery. The unit must be installed by a qualified hybrid technician for the warranty to remain valid.
High-voltage safety
This is a high-voltage hybrid component. Removal and installation must be performed by a technician qualified in hybrid/EV service, using the correct isolation procedure and personal protective equipment.
Shipping
Ships freight, 2-7 business days within the continental US. Residential deliveries are curbside to the nearest terminal; signature required. Inspect the shipment before signing – damage claims must be filed with the carrier.
