Description
Genuine Toyota inverter assembly with converter for the fourth-generation Prius, ZVW50 chassis. Toyota redesigned the power control unit for the XW50 platform – it is roughly a third smaller and lighter than the ZVW30 unit, with reduced switching losses, and it mounts directly on top of the P610 transaxle instead of alongside it.
Match your part number before ordering. This generation spans several revisions (G9200-47260, -47261, -47262, -47270) and they are not freely interchangeable. The number is on the label on top of the case. Prius Prime / PHV models use different units again (G9200-47273, G9200-49108).
Fitment
- Toyota Prius 2016-2021 – ZVW50 chassis (XW50, 2015-up)
- Part numbers: G9200-47260, G9200-47261, G9200-47262, G9200-47270

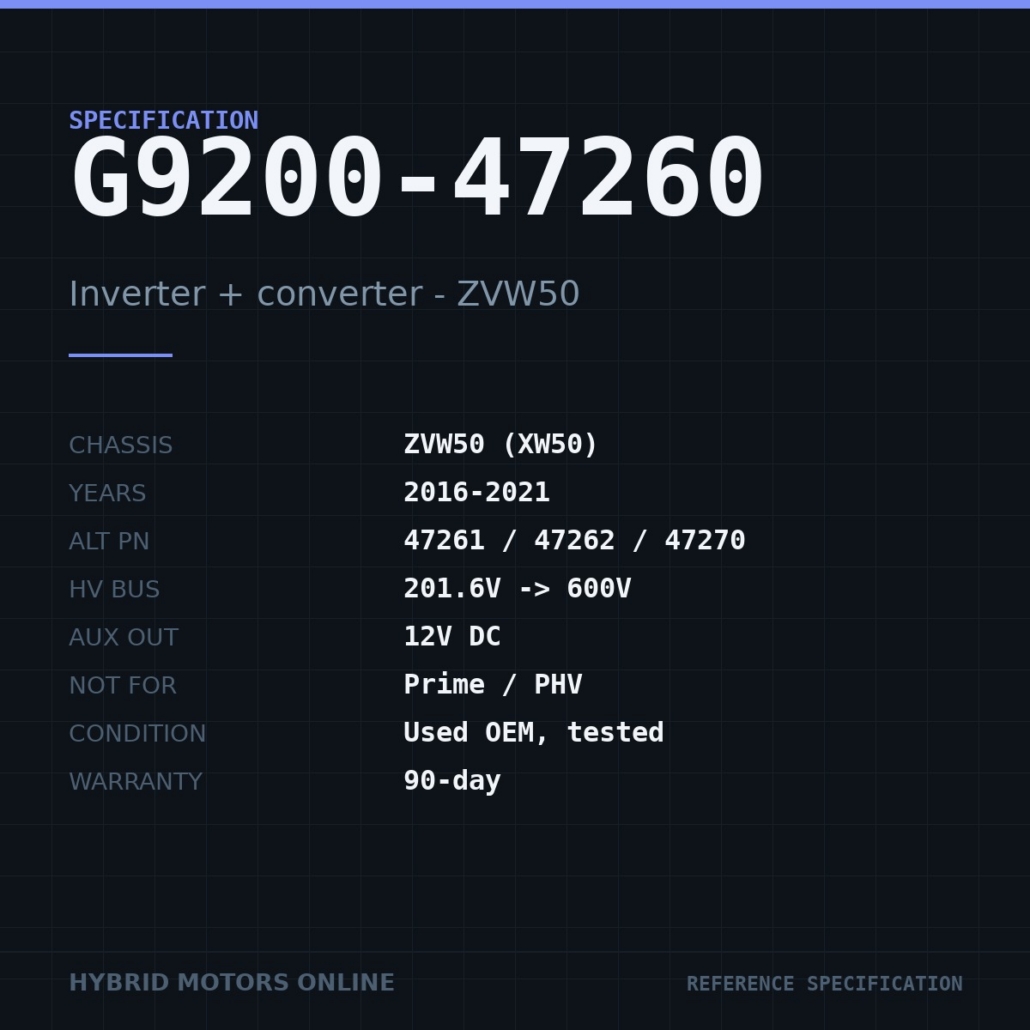

Specifications
- Type: Inverter assembly with integrated DC-DC converter
- Traction bus: 201.6V NiMH pack, boosted to 600V
- Accessory output: 12V DC
- Cooling: Dedicated low-temperature inverter coolant loop
- Condition: Used OEM, tested, imported from Japan
What’s included

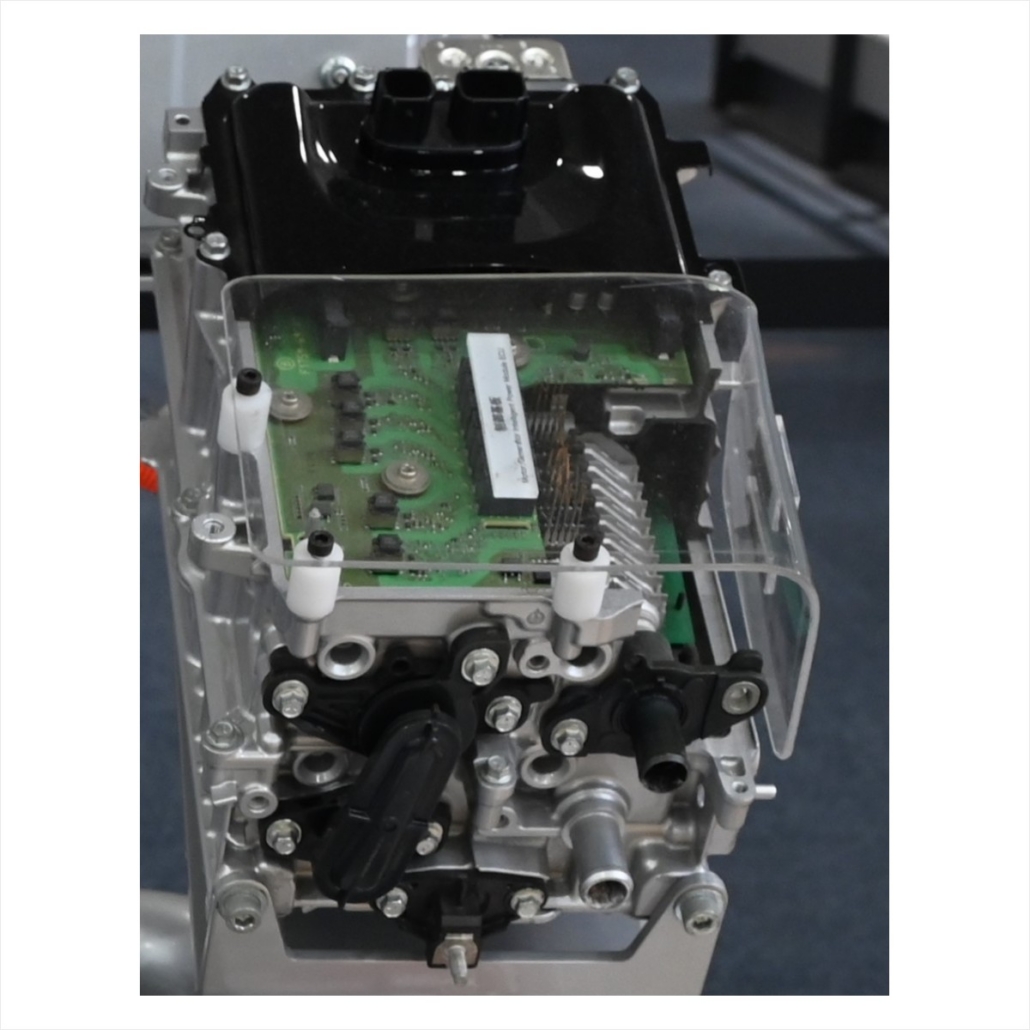

Inverter assembly with integrated DC-DC converter, as pictured. High-voltage cables, coolant hoses, mounting brackets and the inverter coolant pump are not included unless shown.
Warranty
90-day warranty from date of delivery. The unit must be installed by a qualified hybrid technician for the warranty to remain valid.
High-voltage safety
This is a high-voltage hybrid component. Removal and installation must be performed by a technician qualified in hybrid/EV service, using the correct isolation procedure and personal protective equipment.
Shipping
Ships freight, 2-7 business days within the continental US. Residential deliveries are curbside to the nearest terminal; signature required. Inspect the shipment before signing – damage claims must be filed with the carrier.
